PosiTector® BHI

Barcol Hardness Impressor

Measures the hardness of soft metals such as aluminum, aluminum alloys, copper, brass, and other materials such as harder plastics, and fiber-reinforced plastic

  • Easy-to-read digital display
  • Comparable to 934-1 Barcol Hardness Tester
  • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
  • PosiTector interchangeable platform—attach any PosiTector probe to a single gage body
  • USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
  • Certificate of Calibration included
Made in USA flag with black text below
Conforms to ASTM B648/D2583, DIN EN 59, and AS/NZS 3572.22

Features

simple icon

Simple

  • Easy-to-read digital display
  • Comparable to 934-1 Barcol Hardness Tester
  • User-adjustable measurement time with on-screen countdown
  • Includes spare, field replaceable indentor with replacement tool
  • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • NEW On-gage help explains menu items at the touch of a button
  • RESET feature instantly restores factory settings
durable icon

Durable

  • NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
  • NEW Ergonomic design with durable rubberized grip
  • Shock-absorbing, protective rubber holster for added impact resistance
  • Hard-shell carrying case included
  • Two year warranty on gage body AND probe
accurate icon

Accurate

  • Certificate of Calibration included
  • Hi-RES mode increases displayed resolution for precision applications
  • Includes hard and soft aluminum alloy test disks and leveling plate to verify gage operation
  • Conforms to national and international standards including ASTM
versatile icon

Versatile

  • PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
  • 1 and 2 point calibration options with Cal Reset to restore factory settings
  • Selectable display languages
  • NEW Auto rotating display with Flip Lock
powerful icon

Powerful

  • Continually displays/updates average, standard deviation, min/max, and number of readings while measuring
  • NEW Screen Capture—save 100 screen images for record keeping and review
  • HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
  • NEW Instant-on feature quickly powers up the gage if recently powered down
  • NEW Up to 30% longer battery life
  • USB Port for fast, simple connection to a PC and to supply continuous power
  • PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
  • Every stored measurement is date and time stamped
  • Software Updates via the internet keep your gage current
  • Includes PosiSoft suite of software for viewing, analyzing and reporting data
specifications icon

Specifications

Measurement Range
20 – 100 Barcol
Resolution
0.1 Barcol
Accuracy
± 2 Barcol
Size*
127 x 66 x 25.4 mm (5" x 2.6" x 1")
Weight*
137 g (4.9 oz.) without batteries
Probe Size
145 x 97 x 64 mm (5.7" x 3.8" x 2.5")
Probe Headroom
140 mm (5.5")
Probe Weight
400 g (14.1 oz.)

* Size and weight are for the PosiTector gage body only and do not include the probe

Standard Models

Includes ALL features as shown on left plus...
Includes ALL features as shown above plus...
  • NEW Storage of 1,000 readings per probe—stored readings can be viewed or downloaded

Advanced Models

Includes ALL features as shown on left plus...
Includes ALL features as shown above plus...
  • NEW Storage of 250,000 readings from multiple probes in up to 1,000 batches and sub-batches
  • Auto Sub-Batch—automatically create new sub-batches after the desired number of readings are taken
  • Live graphing of measurement data
  • NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
  • WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
  • Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
  • Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
  • Store thickness, profile, environmental, salt contamination, hardness, and wall thickness measurements in individual batches

All gages come complete with test disks (2), leveling plate, replacement indentor with replacement tool, glass plate, protective rubber holster, wrist strap, 3 AAA batteries, instructions, hard shell case, protective lens shield, Long Form Certificate of Calibration, USB cable, PosiSoft Software, two (2) year warranty.

View More Features

Models

Step 1: Choose a gage body

Step 2: Select A Model

Click model to download cutsheet
PosiTector RTR with standard gage body
BHI1
View PDFAdd to Instant Quote
Green check graphic denoting that an item is in stock
In Stock
Same-day shipping if ordered by 2PM EST

Step 2: Select A Model

Click model to download cutsheet
PosiTector RTR with advanced gage body
BHI3
View PDFAdd to Instant Quote
Green check graphic denoting that an item is in stock
In Stock
Same-day shipping if ordered by 2PM EST

Step 2: Select A Model

Click model to download cutsheet
PosiTector RTR probe
PRBBHI
View PDFAdd to Instant Quote
Green check graphic denoting that an item is in stock
In Stock
Same-day shipping if ordered by 2PM EST
Note: Newer probes may not be compatible with older gage bodies. See probe compatibility chart for more information

F.A.Q.

plus-icon
minus-icon

What is a Barcol Hardness Impressor?

A Barcol Hardness Impressor is an instrument that measures the indentation hardness of soft metals (aluminum, aluminum alloys, copper, brass, etc.), harder plastics and fiber-reinforced plastics.

plus-icon
minus-icon

What are some typical applications for Barcol hardness?

  • Aluminum production
  • Forgings, castings, raw stock inspection
  • FRP/GRP - fiber and glass reinforced plastics (both reinforced and non-reinforced rigid plastics)
  • Duro or hard thermo plastics
  • Degree of cure in composite materials
plus-icon
minus-icon

I currently use an analog (dial) type Barcol Impressor. What are the advantages of the digital PosiTector BHI?

The PosiTector BHI has numerous advantages over conventional analog instruments, and over many competitive digital instruments:

  • Memory: The PosiTector BHI has the ability to save readings for archival or reporting, without the need for error-prone transcription. This greatly enhances the reliability and convenience of reporting.
  • Reporting Software Options: The PosiTector BHI includes the PosiSoft suite of software for viewing and reporting data. Select from a powerful desktop version, built-in USB drive, web-based or mobile applications.
  • Test Time: Some materials continue to deform while the measurement is being taken. To achieve consistent results, it is often recommended to record measurements after a set amount of time has elapsed. The PosiTector BHI allows users to set a test time, which begins counting down on the screen when the indentor is placed on the surface to be measured. After that period has elapsed, a measurement is recorded and displayed. This is vastly superior to existing methods of using a stopwatch, or more often, estimating when the required test time has elapsed.
  • ‍Auto Sub-Batch (Advanced models only): As with most measurement processes, it is advisable to take multiple measurements at each test location (spot), to ensure the user hasn’t taken an erroneous or outlying reading. With the Auto Sub-Batch feature, a new sub-batch is created after the desired number of measurements is taken, conveniently grouping readings from each location.
  • ‍Interchangeability: PosiTector body accepts all PosiTector BHI, SHD, 6000, 200, IRT, DPM, RTR, SPG, SST, and UTG probes easily converting from a hardness tester to a coating thickness gage, dew point meter, infrared thermometer, surface profile gage, soluble salt tester, or ultrasonic wall thickness gage.
plus-icon
minus-icon

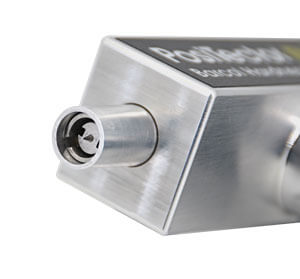

What is the life expectancy of the probe tip?

The durable probe tip is designed for long life and continuous accuracy. A glass zero plate and test disks are included for verifying accuracy. Replacement probe tips are available to replace worn, out of tolerance tips.

plus-icon
minus-icon

Why is a glass zero plate included?

The PosiTector BHI is factory calibrated and for most applications no calibration adjustment is required. However, there may be times when a zero adjustment is necessary including after indentor replacement or to compensate for indentor wear. For best accuracy, the Gage should be zeroed on the included glass plate.

plus-icon
minus-icon

Can I purchase a new PosiTector BHI probe for an existing PosiTector gage body?

Yes. PosiTector BHI probes are compatible with PosiTector Standard gage bodies with a color display and PosiTector Advanced gage bodies with serial numbers greater than 730,000. You can simply update your existing PosiTector gage body by following step-by-step instructions at www.defelsko.com/update.

plus-icon
minus-icon

Is the new PosiTector BHI probe compatible with PosiSoft solutions?

Yes. The NEW PosiTector BHI probes are compatible with PosiSoft Desktop v4, PosiSoft.net and the PosiTector App for Apple and Android. They are currently not compatible with the PosiTector SmartLink.

plus-icon
minus-icon

How are PosiTector BHI probes calibrated at DeFelsko?

Each PosiTector BHI probe is calibrated using certified materials referenced in ASTM B648-10. A Long Form Certificate of Calibration containing actual measured values is included with each probe.

plus-icon
minus-icon

Still need help?

Before returning your gage or instrument for service, review the troubleshooting steps on the Troubleshooting guide, or speak with a member of our technical support team by calling +1-315-393-4450.
